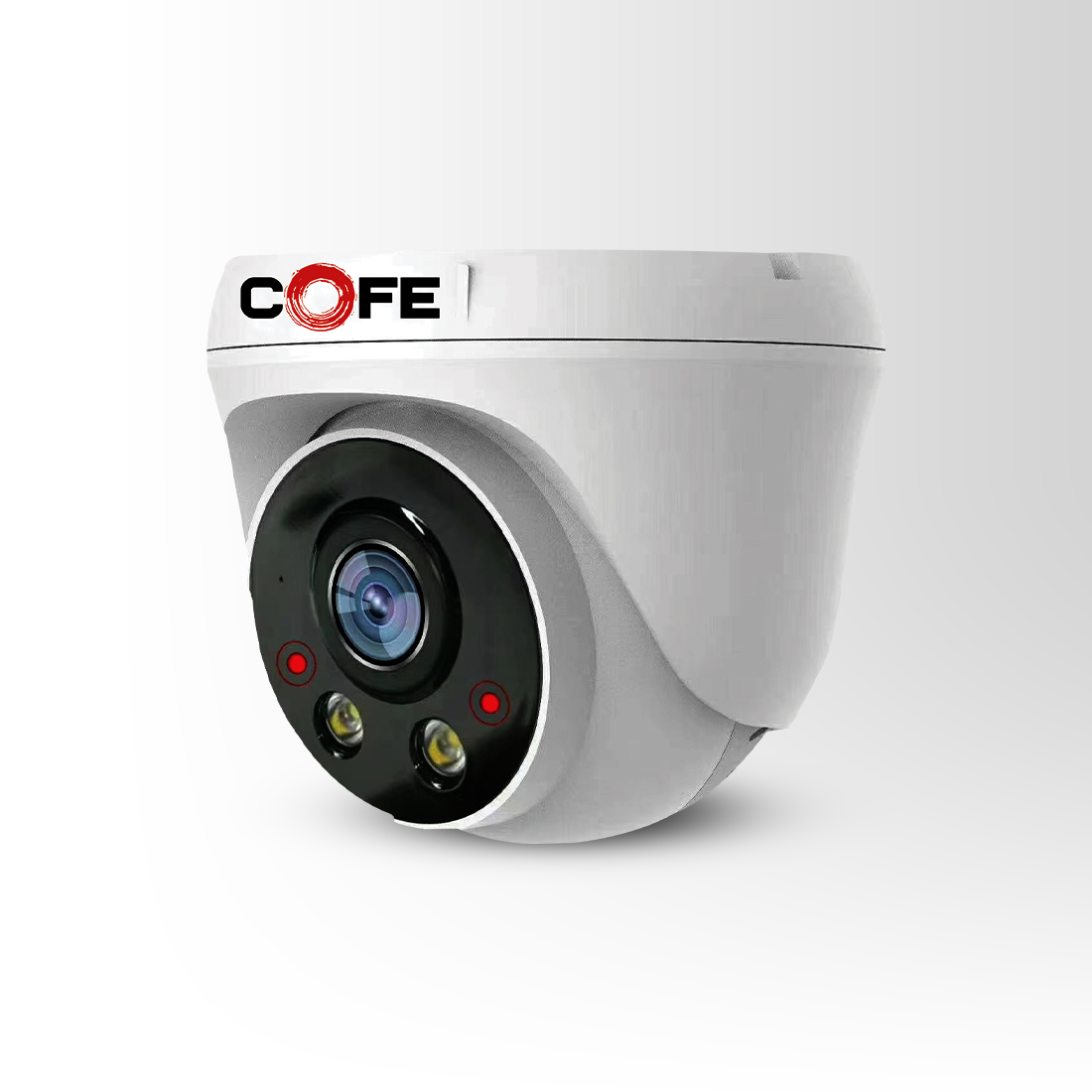

COFE-MHD-DP02
Thumbnail

COFE-MHD-DP02

Image Sensor Signal Min. Illumination Shutter Time Lens Day & Night 2.4MP/5MP/8MP 1/3" CMOS sensor XVI/AHD/TVI/CVI Color：0.01Lux @(F1.2,AGC ON); 0 Lux with IR B/W: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR 1/50(1/60)s to 1/10,000s HD lens 4mm @F2.2（6mm, 8mm optional) IR-Cut Filter with auto-Switching

Technical parameter

Camera

General

Interface

Camera
Image Sensor 2.4MP/5MP/8MP 1/3" CMOS sensor
Signal XVI/AHD/TVI/CVI
Min. Illumination Color：0.01Lux @(F1.2,AGC ON); 0 Lux with IR, B/W: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/50(1/60)s to 1/10,000s
Lens HD lens 4mm @F2.2（6mm, 8mm optional)
Day & Night IR-Cut Filter with auto-Switching
General
Temperature 00C -+ 550C
Humidity 10%-90% RH
Power Supply DC12V±10%
IR range 2* Array lamp“IR2”:20-30 meters
Interface
Video output 1Vp-p Composite Output(75Ω/BNC)
Audio I/O 1/1, Support coaxial audio
