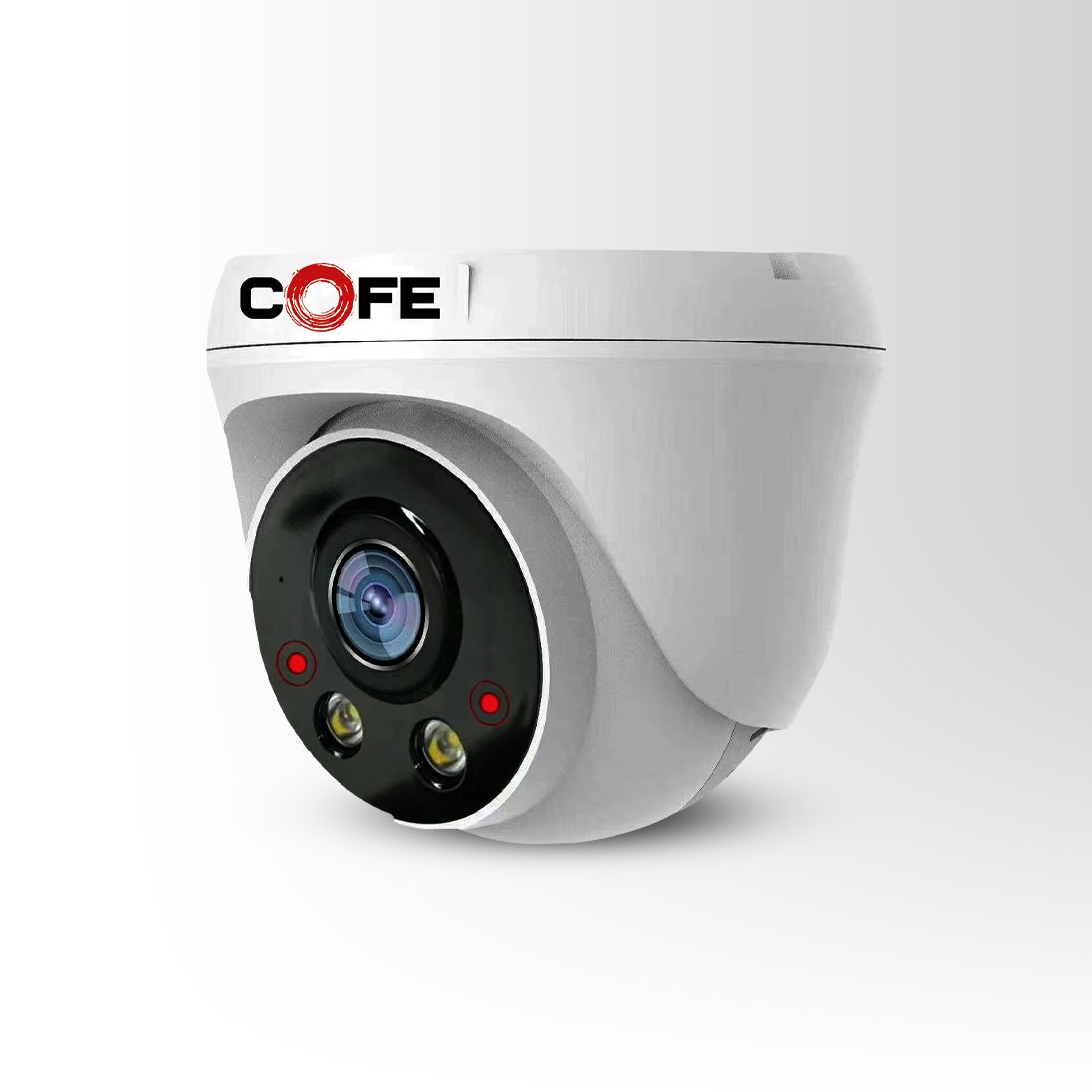

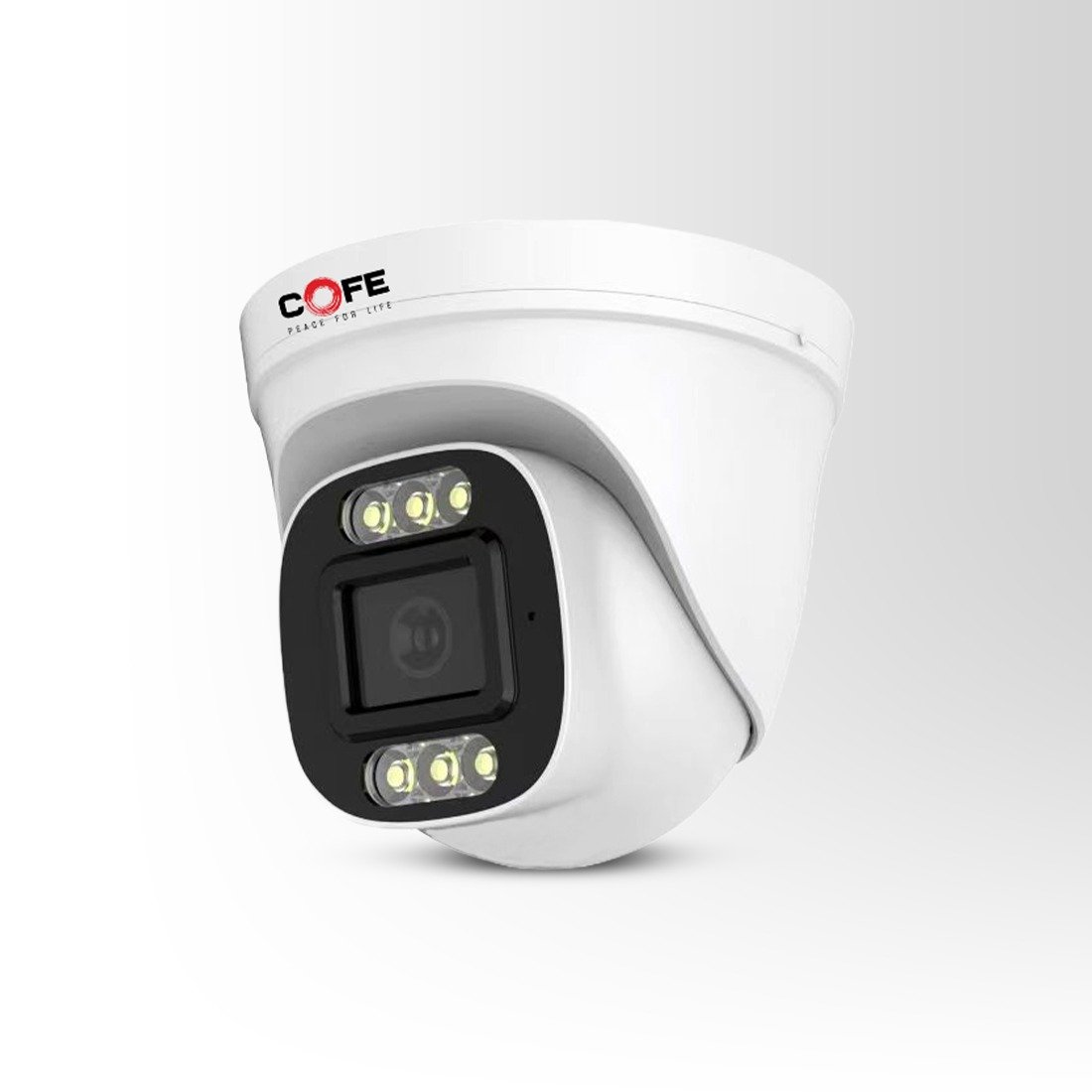

COFE-MHD-DP02
Thumbnail

COFE-MHD-DP02

  • IR Night Vision : Delivers clear surveillance even in complete darkness with built-in infrared LEDs.

  • Human Detection : Smart AI detects human movement, reducing false alerts from pets or motion.

  • Mobile Monitoring : Access live camera feed anytime via mobile app—stay connected on the go.

  • Alarm Push Notifications : Instant alerts sent to your phone when motion or sound is detected.

  • Multi-Platform Support : Works seamlessly across Android, iOS, and PC for flexible access.

Download Manual

Download Datasheet

Technical parameter

Camera

Wi-Fi

Compression

Interface

General

Camera
Megapexel 2MP / 4MP / 8MP
Image Sensor illumination CMOS sensor
Min. Illumination Color: 0.01Lux @ (F1.2AGC ON): 0 Lux with IR B/W: 0.001Lux @ (F1.2AGC ON): 0 Lux with IR
Shutter Speed 1/50(1/60)s to 1/10,000s
Lens 4mm-6mm
Day & Night Full-Color Night Vision
Wi-Fi
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Compression
Video Compression H.265Ai
Bit Rate 0.1Mbps~8Mbps
Audio Encoding G.711a
Interface
Max.Image Resolution 1920*1080, 2304*1296, 2560*1440, 2880*1616, 3840*2160*
Frame Rate Up-To 25fps
General
Operating Temperature -10⁰C ~ 65⁰C
Operating Humidity 10%-90% RH
Power Supply DC 12V ± 10%/POE
IR Range IR Range Up To 25 Mtrs
Housing ABS High Quality Plastic / Metal Varies based on Model
Consumption Up-To 4 Watt
Zoom Digital Zoom Applicable
Light Dual Array Flood Light
Mounting Wall Mount, Ceiling Mount
Features Face Detection, Human Detection, Motion detection
