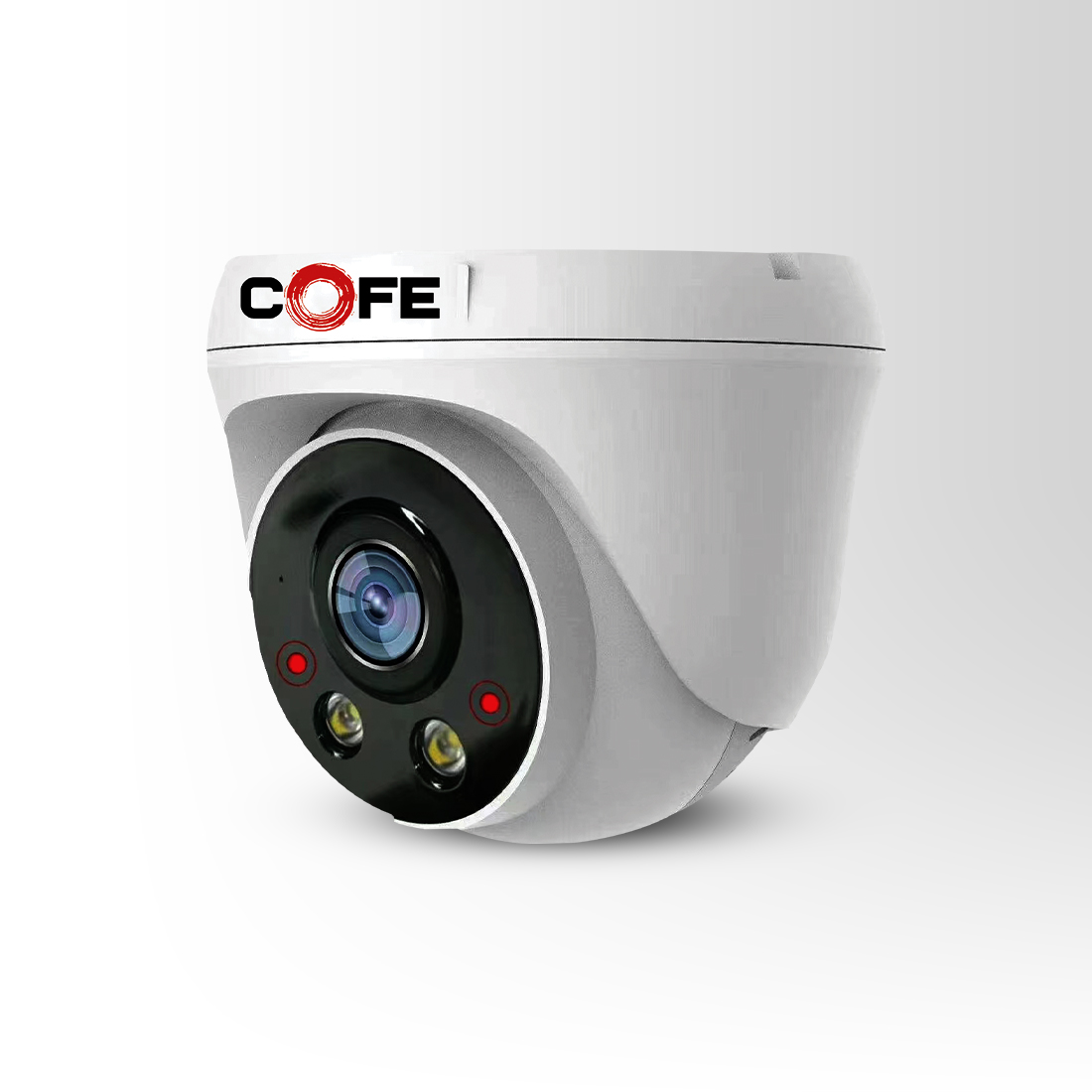

COFE-IP-PDL02
- Automatic ICR
- IR night Vision
- Human Detection
- Mobile Monitoring
- Mic
- Multi-Platform Support
- Automatic electronic shutter /
- Alarm Push
Technical parameter
Camera
| Megapexel | 3MP/4MP/5MP/6MP/8MP |
| Image Sensor | Illumination Sensor |
| Min. Illumination | Color:0.01Lux@(F1.2AGC ON): 0 Lux with IR B/W:0.001Lux@(F1.2AGC ON(: 0 Lux with IR |
| Shutter Speed | 1/50(1/60)s to 1/10,000s |
| Lens | 4mm-6mm |
| Day & Night | IR cut filter with auto switch |
Network
| Storage | Network storage |
| Alarm | Face detection , human detection, Motion detection, video loss, video block, etc. |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, PPPoE, SMTP, NTP, (HTTPS, SIP, 802.1x, IPv6 option |
| Features | anti-flicker, dual-stream, heartbeat, password protection |
Compression
| Video Compression | H.265AI (compatible H.265/H.264) HighProfile, JPEG snapshot |
| Bit Rate | 0.1Mbps~8Mbps |
| Audio Encoding | G.711a |
General
| Operating Temperature | -100C ~ 650C |
| Operating Humidity | 10%-90% RH |
| Power Supply | DC12VĀ±10%/POE |
| IR Range | IR Range Up To 20 mtrs |
| Material | Plastic |
| Consumption | MAX 4W |
Interface
| Ethernet | 1*10/100Mbps Ethernet port, RJ45 port |
| Audio I/O | 1*in/0*out |
